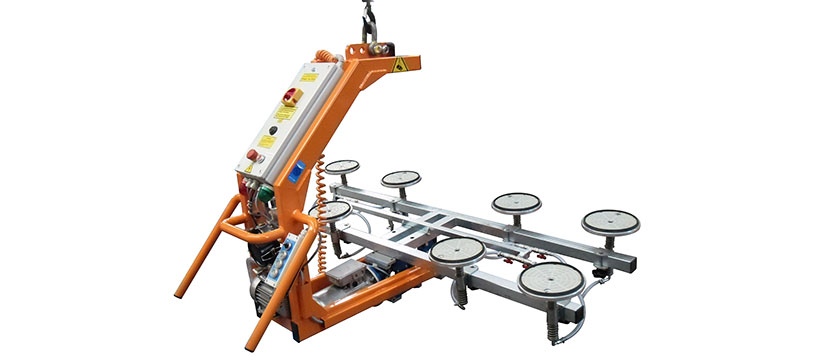

For safe transport and turn-over of construction elements inside closed rooms
| Working Load Limit: | 350 kg horizontal / vertical |
| Suction frame type: | boom consisting of two longitudinal girders with shifting suction pads; alternatively shifting cross beams with suction pads |
| Hoist: | crane / chain hoist |
| Suctioning: | 8 suction pads ∅ 200 mm, other amount/sizes on request |
| Tilting: | 0 - 180°, electrical |
| Vacuum system: | single circuit |
| Power supply: | 230 V / 400 V |
| Operation: | control panel on the device for Suction/Release, Tilting up/down, emergency stop, main switch, safety hand slide valve for Suction/Release |
| Monitoring: | vacuum gauge, signal light red/green, emergency whistle |
| Options: | suction pads that can be separately disengaged, different suction frames, different types and sizes of suction pads, integration of chain hoist control (ABUS) |
