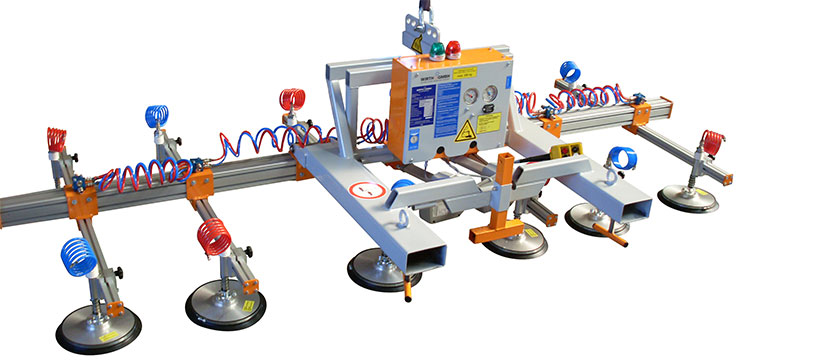

For horizontal handling of metal sheets and other suitable materials
| Working Load Limit: | 500 kg horizontal / vertical |
| Suction frame type: | boom consisting of one main girder and at least two shifting cross beams |
| Hoist: | crane / forklift |
| Suction Pad: | 12 suction pads Ø 200 mm |
| Tilting: | electrical 90° |
| Vacuum system: | single circuit |
| Power supply: | 24 V battery system |
| Operation: | pendant control panel |
| Monitoring: | vacuum gauge, signal light, emergency whistle emergency whistle indicating energy breakdown |
| Options: | radio remote control |
Rotate 360°
Rotate +/- 90°
Rotate 90°/95°
Turn-over ≥ 180°
Turn-over 0 - 96°/98°
Incline 82°/84° - 90°
Manual operation
Mains current
Compressed air
