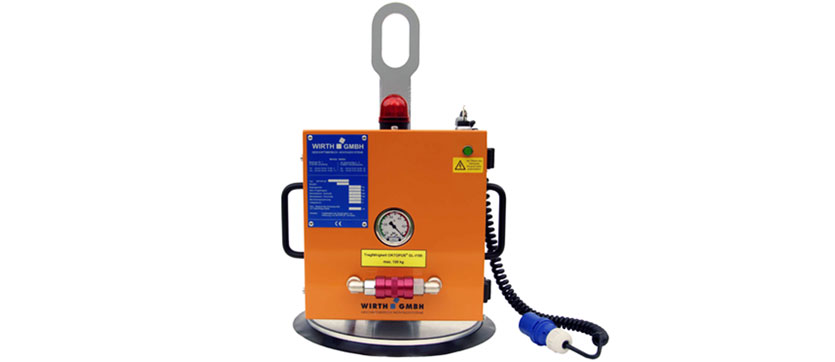

For horizontal handling of metal and plastic sheets up to a maximum weight of 300 kg


Working Load Limit:300 kg horizontal
Suction frame type:boom
Suctioning:1 suction pads Ø230, horizontal
Hoist:crane / chain hoist
Vacuum system:single circuit
Power supply:230 V AC
Operation:electrical operation for Suction / Release
energy saving function (vacuum controlled)
Monitoring:vacuum gauge, signal light, emergency whistle
emergency whistle indicating energy breakdown
Options:400 V AC | battery system | compressed air
safety hand slide valve for Suction / Release
pendant control panel retainer

Legend

  • Crane attachment
  • Fork lift attachment
  • Handling horizontally
  • Handling vertically
  • Rotate 360°
  • Rotate +/- 90°
  • Rotate 90°/95°
  • Turn-over ≥ 180°
  • Turn-over 0 - 96°/98°
  • Tilt around horizontal axis
  • Incline 82°/84° - 90°
  • Control panel at the device / cable remote control
  • Radio remote control
  • Manual operation
  • Mains current
  • Battery
  • Compressed air
