OKTOPUS® GGA - E


Load lifting attachment for lifting and positioning construction elements

Scope of application

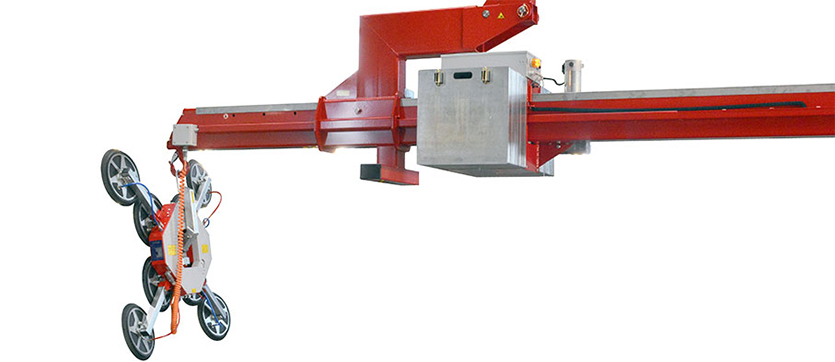

The load lifting attachment counterweight balancer GGA-E-FB 1000/34/2,0 fulfills the requirements of DIN EN 13155. Together with load hook and slings (e.g. ropes, chains, belts etc.) it serves for lifting and positioning construction elements (e.g. those with integrated crane eye) in difficult to access areas (e.g. below eaves, balconies, stages etc.).

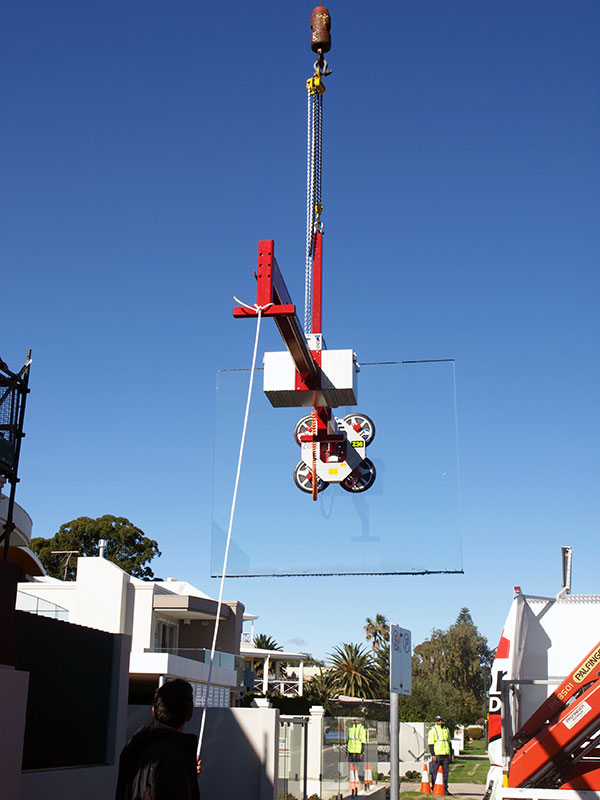

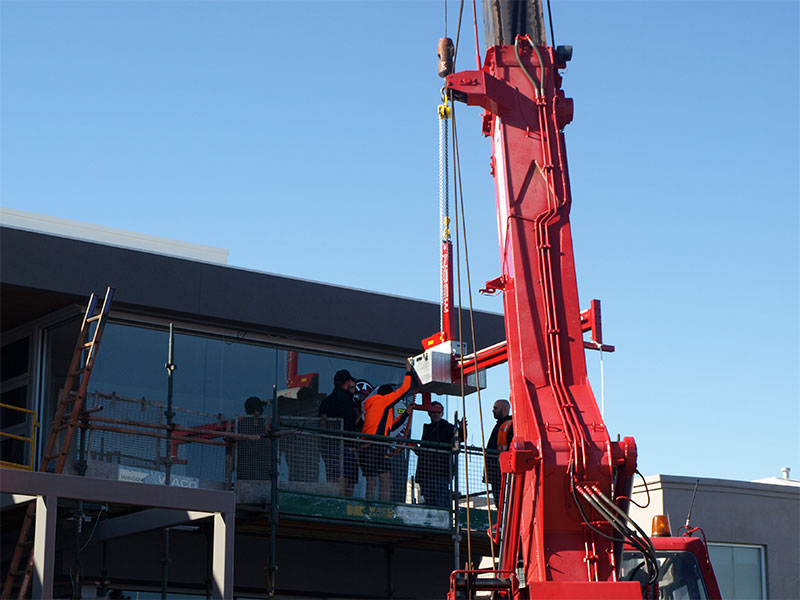

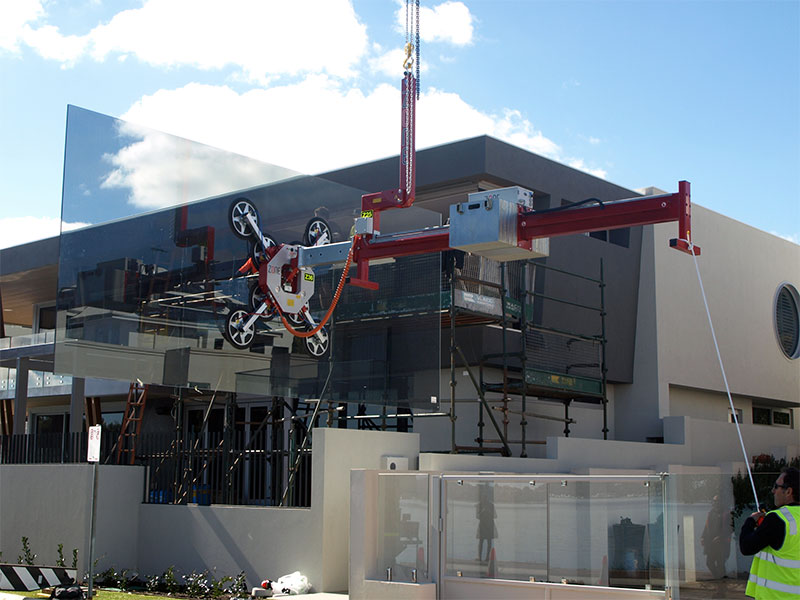

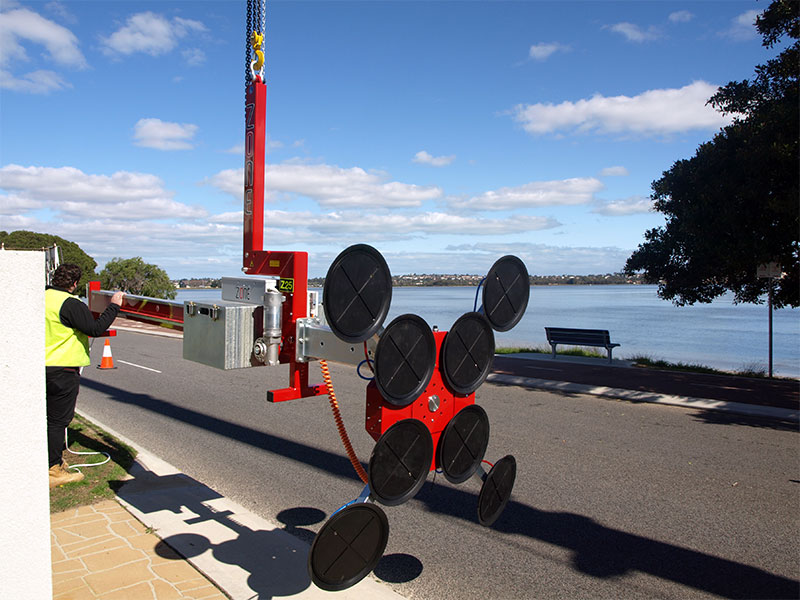

Connecting a tilting vacuum lifter of the series OKTOPUS® GL-KN 1000, GL-KN-F 1000, GL-RN-B 400/600/800 or GL-RN-F 400/600/800 to the counterweight balancer GGA-E-FB 1000/34/2,0 allows the installation of large-sized glass and facade elements in difficult to access areas.
Electrically driven counterweights allow balancing the loads.

Description

construction site use together with
- a load hook and slings or
- with vacuum lifters OKTOPUS® GL-KN-B 1000, OKTOPUS® GL-KN-F 1000, OKTOPUS® GL-RN-B 400/600/800 or OKTOPUS® GL-RN-F 400/600/800
electrically driven counterweights operated by cable or radio remote control for balancing loads up to 1000 kg (plus weight of possibly mounted vacuum lifters)
battery-powered energy supply with high capacity
built-in gauge for monitoring energy supply

Application data

Counterweights	34 pieces removable (1 counterweight = 25 kg)
Operation	- GGA-E-FB 1000/34/2,0 with load hook: with cable remote control of the counterweight balancer - GGA-E-FB 1000/34/2,0 together with vacuum lifter OKTOPUS® GL-KN 1000 or - OKTOPUS® GL-RN 400/600/800: with cable or radio remote control of the vacuum lifter
Power supply	24 V DC battery system
